With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 720x1280 TFT LCD /5.5-inch color display /IPS full-view LCD display /MIPI interface /ILI9881 TFT-H055A1HDIIL3N30 | TFT Display | 720x1280 |
|
71.04x129.56x1.62 | 5.5 | 5.5 | 67.932x120.768 | IPS | 350cd/m2 | FPC-30 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ILI9881 | |

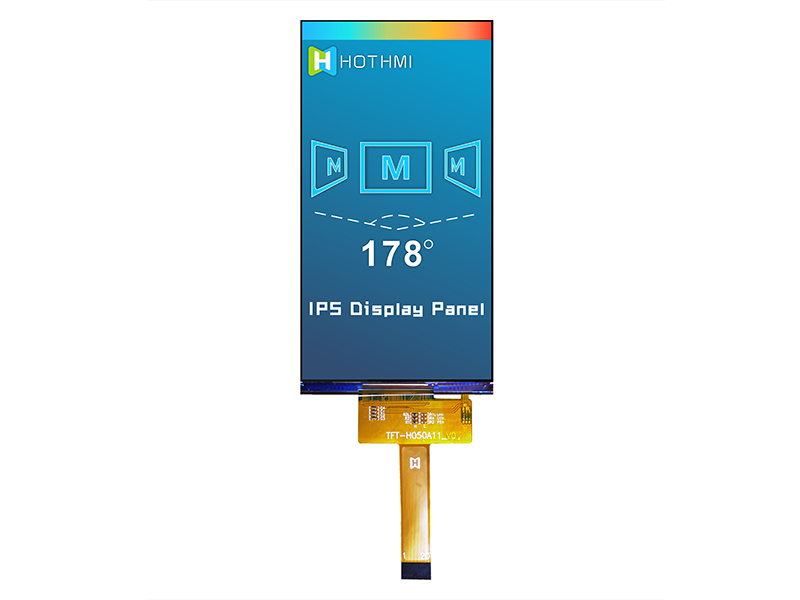

| 5.0-inch color display/480x854 IPS full-viewing angle TFT display/MIPI interface/ST7701S controller/Android TFT-H050A11FWIST5N20 | TFT Display | 480x854 |
|
64.76x118.70x2.0 | 5.0 | 5.0 | 61.632x109.654 | IPS | 550cd/m2 | FPC-20 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7701S | |
| 7.8-inch 400x1280 resolution display/IPS wide temperature LCD display TFT-H078A1ZAIST7N40 | 400x1280 |
|
201.18x65.20x3.3 | 7.8 | 7.8 | 190.08x59.4 | IPS | 750cd/m2 | FPC-40 pin | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7703 | ||
| 5.0-inch high brightness TFT /800x480 color IPS display/LVDS interface/sunlight readable display TFT-H050A7SVISTKN40 | TFT Display | 800x480 |
|
120.7x75.8x2.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 1000cd/m2 | FPC-40 pin | LVDS | Anti-static ESD 8KV | -30~85℃ | +3.3V | ST7262 | |
| 8.0-inch Standard TFT LCD/1024x600 Color Display/RGB Interface/T.B.D Controller/STM32/RK Series | TFT Display | 1024x600 |
|
192.8x116.9x6.55 | 8.0 | 8.0 | 176.64x99.36 | IPS | 600cd/m2 | FPC-50 pin | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | T.B.D | |
| 5.0-inch high brightness IPS full-view TFT/RGB interface/ST7262/800x480 full-view TFT display/STM32/RK series | TFT Display | 800x480 |
|
120.7x75.8x2.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 1000cd/m2 | FPC-50 pin | RGB | Anti-static ESD 8KV | -30~85℃ | +3.3V | -30~85℃ | |
| 5.0-inch color full-view IPS TFT/RGB interface/800x480 full-view TFT display/STM32/RK series/ST7262 | TFT Display | 800x480 |
|
120.7x75.8x3.0 | 5.0 | 5.0 | 108.0x64.8 | IPS | 600cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | -30~80℃ | |
| 5.0-inch 800x480 color high brightness resistive touch IPS TFT LCD/RGB interface/STM32/RK series/ST7262 | TFT Display | 800x480 |
|
120.7x75.8x4.5 | 5.0 | 5.0 | 108.0x64.8 | IPS | 108.0x64.8 | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | -30~80℃ | ||
| 5.0-inch Color Capacitive Touch IPS TFT LCD/800x480 Full Viewing Angle TFT Display/RGB Interface | TFT Display | 800x480 |
|
120.7x75.8x4.75 | 5.0 | 5.0 | 108.0x64.8 | IPS | 450cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7262(TFT),GT911(CTP) | |
| 4.3-inch 800x480 color high brightness IPS TFT LCD/full viewing angle sunlight visible TFT display/TTL interface/STM32/RK series | TFT Display | ST7262 |
|
105.5x67.15x4.95 | 4.3 | 4.3 | 95.04x53.586 | IPS | 850cd/m2 | FPC-40 pin | TTL | Anti-static ESD 8KV | -30~80℃ | +3.3V | -30~80℃ |
