5.0-inch high brightness IPS TFT display | Full-viewing HD LCD TFT | MCU QSPI interface compatible

TFT-H050A19WQINVKN22 It is a 5.0-inch TFT LCD display module with a normally black mode design, a resolution of 480×272 pixels, and a color gamut covering NTSC 60%. It can present a clear picture with high contrast and is suitable for industrial control, smart devices, medical instruments and other fields. The core characteristics of this module are outstanding. In terms of display performance, the brightness can reach 800 cd/m2 (constant current drive test), and it supports a wide operating temperature environment of -30℃ to +80℃, ensuring stable operation under extreme temperatures; in terms of color performance, the color gamut coverage of NTSC 60% makes the picture color rich and the visual effect excellent. In terms of electrical parameters, it adopts a 3.3V ±0.3V low-power design, equipped with NV3041 TFT driver chip and FT5216 touch chip to achieve precise display and touch control.

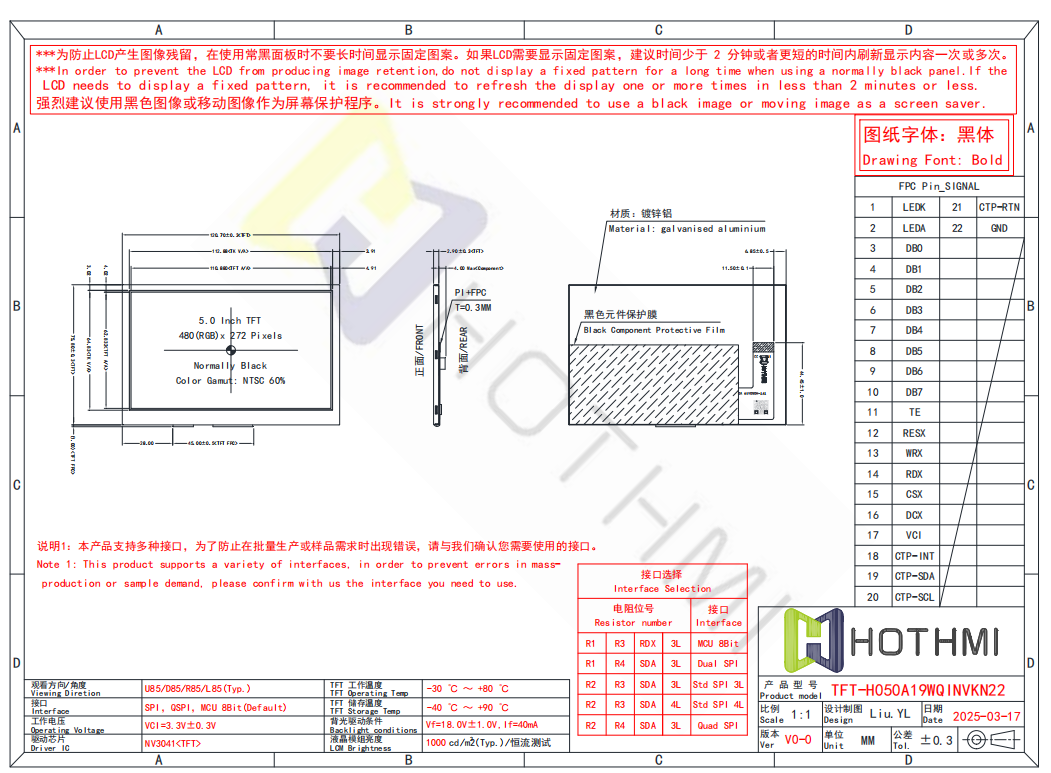

The interface configuration is flexible, and the MCU 8Bit interface is supported by default. It can also switch to SPI or QSPI mode by adjusting the resistor bit number (such as R1/R2/R3). Users need to confirm the interface type with the manufacturer before mass production to avoid compatibility issues. The structural design uses a 0.3mm thick galvanized aluminum alloy shell, which is both lightweight and corrosion-resistant. The dimensional tolerance of key components is controlled within ±0.3mm to ensure assembly consistency.

In terms of usage suggestions, in order to avoid image retention, it is recommended that the static image display time does not exceed 2 minutes, and it is recommended to use a black background or dynamic screen saver; the module storage temperature range is -40℃ to +90℃, which can adapt to harsh environmental requirements. The backlight design uses a black component protection film to further improve the contrast and durability. It should be noted that the interface configuration must strictly refer to the resistor position number description in the document, or contact technical support for confirmation; the touch module (CTP) and TFT dimensional tolerances are marked independently, and attention should be paid to matching during installation.

This module is mainly used in industrial HMI interfaces, portable instruments, smart home control panels and other scenarios. Its high brightness and wide temperature, flexible configuration of multiple interfaces, lightweight corrosion-resistant structure and anti-residual design can meet the reliable display needs in a variety of scenarios.
