Product type：Graphic LCD Module
Show contents：128x64
Outline size(mm) ：45.0x42.0x5.4
Size of View Window(mm)：36.0x33.5
Display size(mm) ：33.25x20.45
Point spacing(mm)：0.32x0.26
Product application：Instruments
Visual angle：6H
Backlight type or brightness：YG
Connection PIN Number：11PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7567

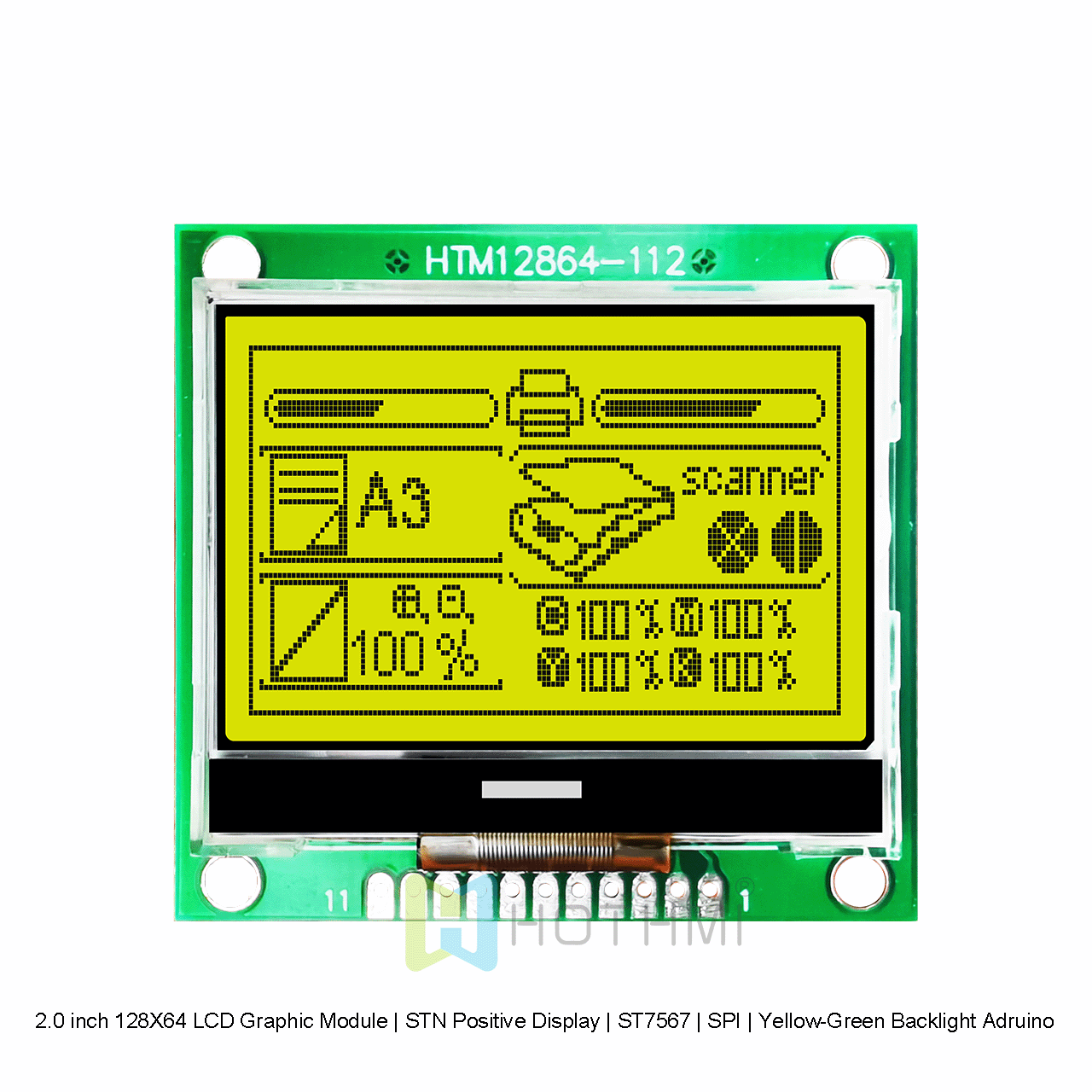

The 2.0 inch 128X64 Graphic LCD Module displays dark gray pixels on a yellow-green background. This translucent LCD display is carefully designed, and in dark conditions, the LCD has a strong built-in backlight to provide high contrast and display clear graphics to the viewer. In bright environments, the reflectivity of the polarizer can reflect the image to the eye, allowing the image to be observed smoothly. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module has a built-in negative voltage. It is also fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This product is designed to withstand harsh operating conditions and works exceptionally well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.
